Truck Brakes
and Mobile Hydraulics
Featured Products

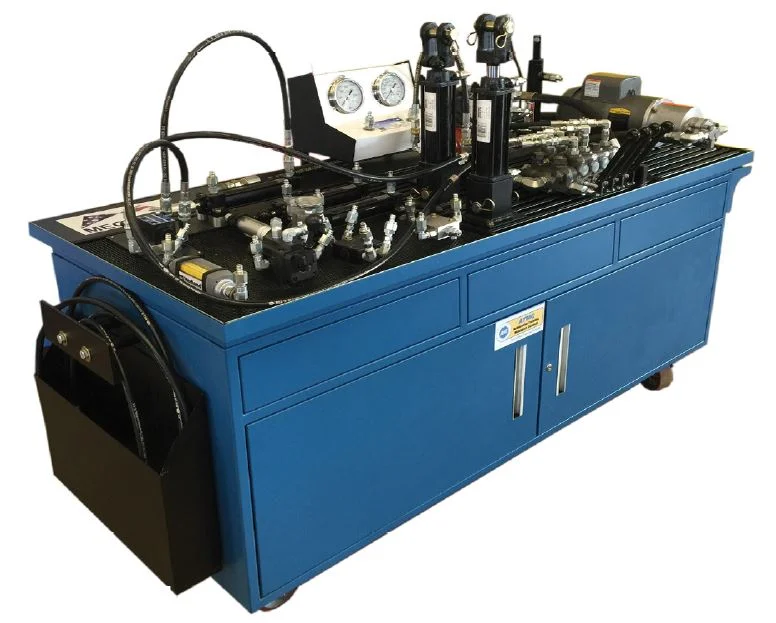

Combined Basic and Mobile Hydraulics
Model: MEG820
• Fully operational Hydraulic system
• Hydraulic Test – Test mobile hydraulic circuits on
the bench or test live work circuits
• Gear pump, vane pump, and axial piston/variable
displacement pump
• Includes high quality and full-sized components
Truck/Trailer Air Brake w/ABS
Model: MEG685-ABS
• Fully Functional Mobile Unit
• Electronic module connecting wheel
speed sensor signals to ABS Controller
• Fault Insertion Box
• Five SPDT momentary switches
• Bendix Controller
• Six Sensors

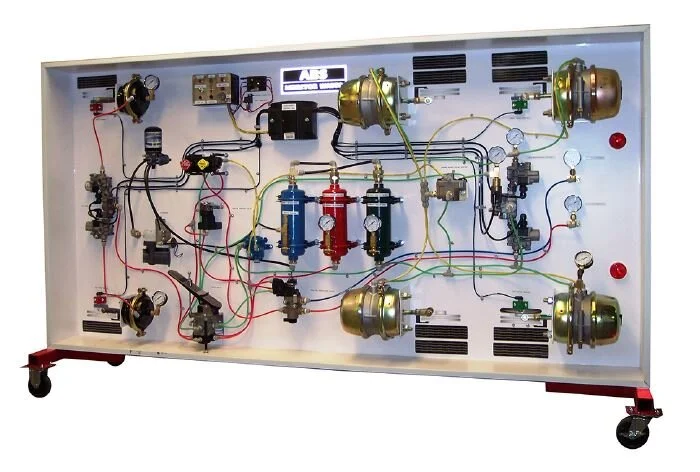

Truck Antilock Brakes
and ATC Trainer
Model: MEGABS/ATC
• Meritor Wabco Electronic Controller
• Meritor Wabco wheel speed sensors
• Wheel Speed Tone
• Wabco exciter rings
• ABS modulator valves are 12 volt
• Wabco style wiring as on real vehicle
Truck Trailer WABCO EBS
Braking System Trainer
Model: MEG-WABCOEBS
• Fully functional truck trailer braking system
• Functional electronic EBS system
• Pressure gauges
• Driving mode simulation
• Mechanical service and repair training
• Integrated emergency stop button
• On board 24V
• Compressed air connection
Tractor Air Brake Trainer
Model: MEG685-TR
• WABCO or BENDIX system
• Actual vehicle components
• Low Pressure Warning Light and Buzzer
• Low Air Pressure Switch
• Tractor Protection Valve
• Quick Release Valve
• Quick Release Double Check Valve Combination
• Hand Control Valve
• Dual System Foot Brake Valve
• Hand Control Valve
• Manifold Dash Valves
• Double Check Valve
Trailer Air Brake Trainer
Model: MEG685-TL
• Trailer Hook Up
• RG2 or RG5 Valve
• W-Way Check Valve
• RT4 Valve
• Air Gauge
• Drain Valve - Manual
• Brake Light
• Service and Emergency Glad Hands
• Spring Brake
• Service Brake Chamber
• D.O.T. Air Brake Lines
• Tractor Hook Up
Bendix Tractor ABS-6
Air Brake Display Board
Model: MEG-ABS-BX
• Functional Bendix EC-60 Controller system
• Functional Automatic Traction Control (ATC)
• Bendix Automatic Slack Adjusters (ASA) or
equivalent
• Power Line Carrier (PLC) warning light feature
• Standard ABS/ATC warning lights & switch
control panel
• Bendix AD-IS Air Drier System
• Standard Bendix tractor air brake valve package • J-1939 9-pin Diagnostic Data Link (DDL) including
RDU
Meritor WABCO Trailer ABS
Air Brake Display Board
Model: MEG-ABS-MW
• External ABS warning light
• Meritor Automatic Slack Adjusters (ASA) or
equivalent
• Inline air filter at service glad hand
• With Bendix TRDU & adapter “T” for trailer plug
Bosch Hydro-Max II Brake System Trainer
Model: MEG685-BH
• Hydro-Max brake booster system
• Functional electric back-up system only
• Brake booster warning system
• Electronic warning module
• Bosch pin-slide disc brake assemblies
• Functional brake fluid system
• Wabco ABS and warning system
• Bosch driveline parking brake system
Meritor Steer Axle w/ Drum Brake Trainer
Model: MEG685-MSA
• Meritor front axle and steering knuckle
• Includes tie rod and steer arms
• Complete Meritor drum brake
• Conventional wheel bearing hubs or
ConMet preset wheel bearing hubs
• Air brake system must be functional
• Treadle foot valve
• Including ABS modulator valve
Truck Brake Cutaways
Custom Cutaways Available

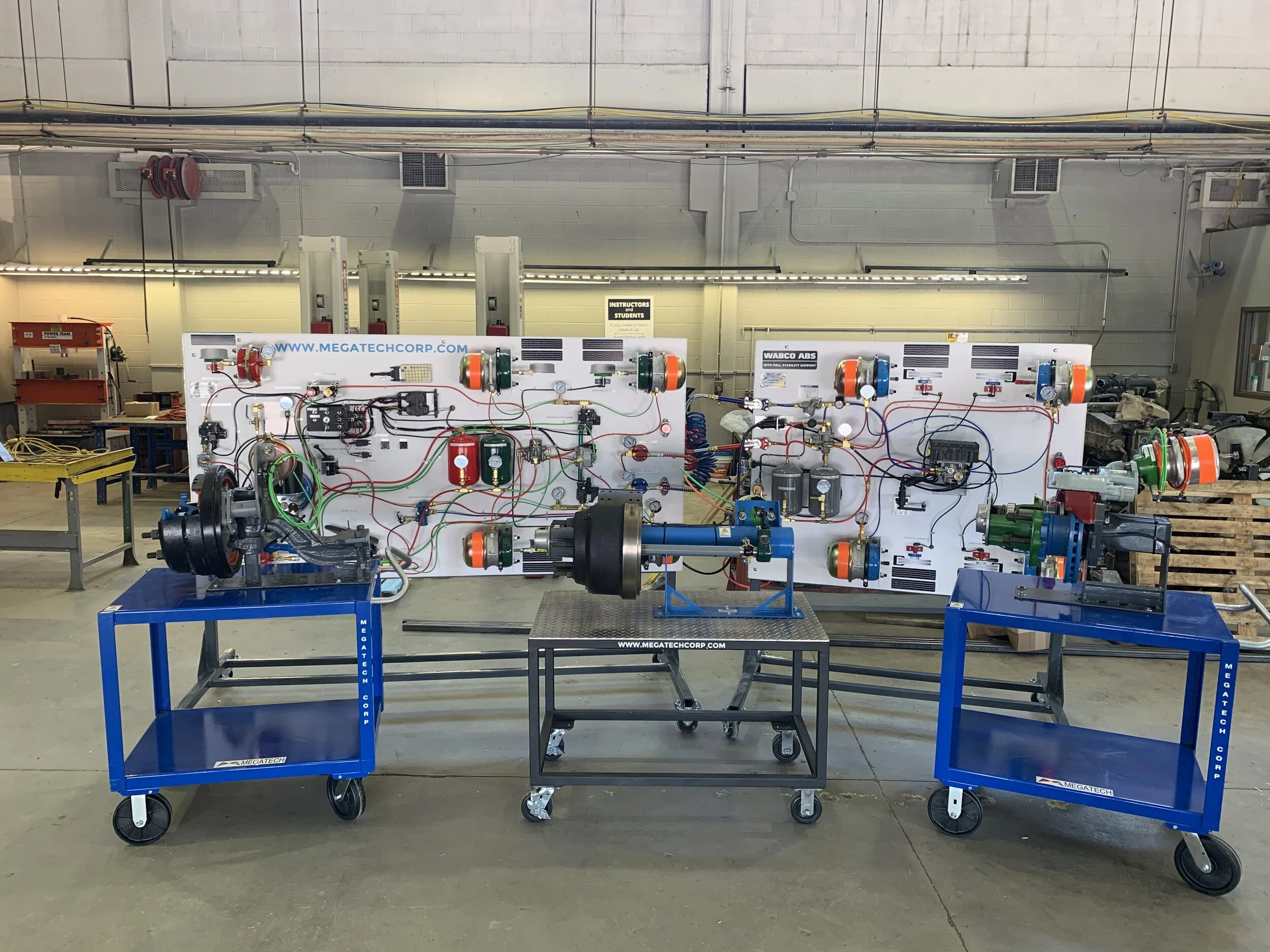

More Truck Brake and Mobile Hydraulic Trainers and Cutaways available
Pictures on our website our for indicative purposes only. Please contact us for complete product specifications.
